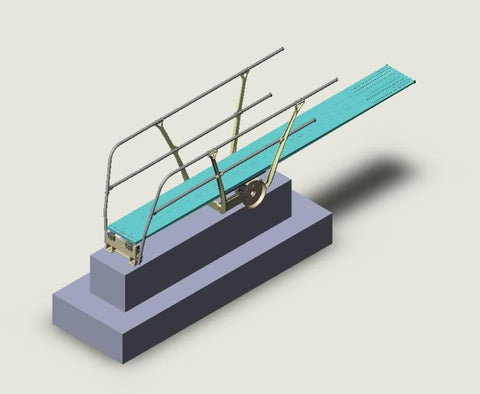

Durafirm short stands have fulcrum units identical to the 1M and 3M stands, and similar hand rails and anchoring units. They are designed for use on concrete pedestals or platforms, with the use of 6 Durafirm bronze anchors, or the insert kit, at either one or three meter level. This model is supplied with top and intermediate hand rails on two sides. Catalog # 70-231-520.
SPECIFICATIONS: The Diving Stand Anchor and Fulcrum Assembly, Catalog #70-231-5_ _, "Short Stand" is designed for mounting on a concrete, steel, or other field-fabricated diving platform. The diving stand consists of heavy aluminum castings finished with epoxy powder-coating. The roller and tracks are heat treated and hard-anodized extruded aluminum. The bearings for the roller tube and slide are Teflon/polymer with grease path. The diving board anchor hinges are heat treated aluminum forgings with a design tensile strength of 35,000 psi and are hard anodized. The diving board anchor bolts are custom short-neck 5/8" diameter by 3 1/2" long stainless steel carriage bolts, speccially designed to work on the Duraflex diving boards. The diving stand is supplied either without handrails, or with top and intermediate hand rails on two sides. The diving stand handrails are 304 stainless steel tubing, firmly attached to the hand rail supports with stainless steel rail clamps. The rails extend to the edge of the swimming pool and the rail ends are fitted with safety tips. The stand is designed for mounting on new concrete platforms with the use of six Durafirm, Catalog #70-231-900 Bronze Deck Anchors, or with the Insert kit, part #906.
SPECIFICATIONS: The Diving Stand Anchor and Fulcrum Assembly, Catalog #70-231-5_ _, "Short Stand" is designed for mounting on a concrete, steel, or other field-fabricated diving platform. The diving stand consists of heavy aluminum castings finished with epoxy powder-coating. The roller and tracks are heat treated and hard-anodized extruded aluminum. The bearings for the roller tube and slide are Teflon/polymer with grease path. The diving board anchor hinges are heat treated aluminum forgings with a design tensile strength of 35,000 psi and are hard anodized. The diving board anchor bolts are custom short-neck 5/8" diameter by 3 1/2" long stainless steel carriage bolts, speccially designed to work on the Duraflex diving boards. The diving stand is supplied either without handrails, or with top and intermediate hand rails on two sides. The diving stand handrails are 304 stainless steel tubing, firmly attached to the hand rail supports with stainless steel rail clamps. The rails extend to the edge of the swimming pool and the rail ends are fitted with safety tips. The stand is designed for mounting on new concrete platforms with the use of six Durafirm, Catalog #70-231-900 Bronze Deck Anchors, or with the Insert kit, part #906.
