One Meter Stand Handrails Both Sides

  • Sale

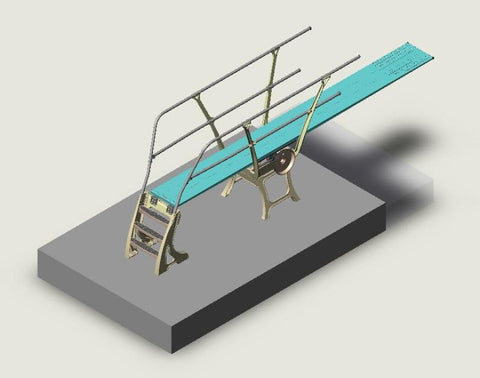

This One-Meter Durafirm Stand is supplied with top and intermediate Handrails on both sides. The One-Meter structures are manufactured in five different heights. Catalog # 70-231-400.

SPECIFICATIONS: The One Meter Diving Stand is Catalog #70-231-400, one meter height, +/- 5%. The diving stand consists of heavy aluminum castings coated with epoxy paint. The roller and tracks are heat treated, hard-anodized extruded aluminum. The bearings for the roller and slide are Teflon/polymer with grease path. The diving board anchor hinges are heat treated aluminum forgings with a design tensile strength of 35,000 psi and are hard anodized. Hinges are mounted on a transverse casting allowing 6 leveling positions in one inch increments. The diving board anchor bolts are custom short-neck 5/8" diameter by 3 1/2" long stainless steel carriage bolts. The diving stand is supplied with top and intermediate hand rails on two sides. The diving stand handrails are 304 stainless steel tubing firmly attached to the handrail supports with stainless steel rail clamps. The rails extend to the edge of the swimming pool and the rail ends are fitted with safety tips. The stand is designed for mounting on new decks with the use of eight Durafirm Catalog #70-231-900 Bronze Deck Anchors; or on existing decks, mounting with 8 through rods (if workspace below), or 8 Hilti stainless steel threaded inserts.
